WFR56V4
5032489068238

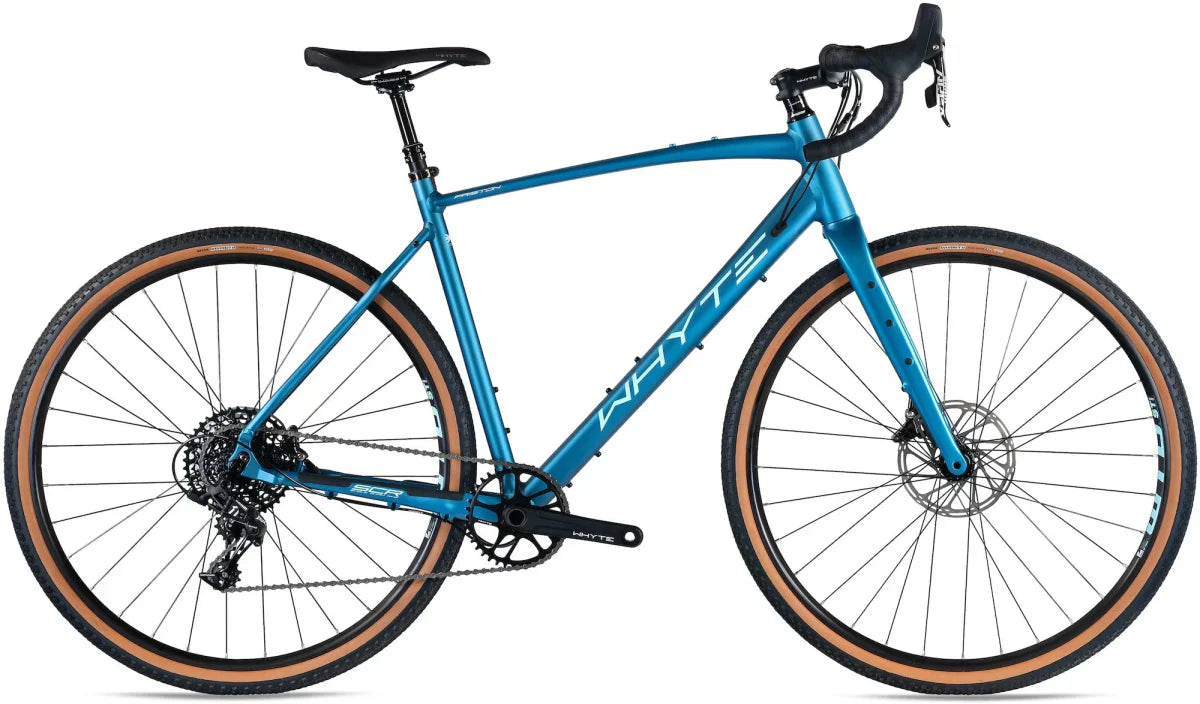

The Whyte Friston V4 LG - 56cm Matt Diesel is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.
Whyte's GX bikes are versatility defined. On-road, off-road or both in the same ride, their uniquely capable and efficiently fast Adventure bikes set a new standard for all-day, all-rounders.
The frame is absolutely riddled with lugs for all the hydration and bike packing storage you could need, with space on the fork, top tube, seat tube and upper and lower side of the downtube. The frame and fork also offer the versatility and tyre clearance to happily run a 45c tyre, and without mudguards potentially the option to go wider. The bike can also take the smaller to 650b wheel to accommodate the even larger sizes.
Pre taped WTB rims combined with Maxxis Rambler tyres allow for an easy tubeless set-up. Just fit the supplied valves, add sealant and get the tyres seated! The Ramblers provide excellent all-round grip from tarmac to sloppy fire roads, and when set up tubeless provides that extra bit of performance and puncture protection.
Fitted with the popular SRAM Apex 1x groupset the Friston is armed with an excellent go-to gravel gearing set up, offering a great range of gears with reliable shifting. No front derailleur keeps things simple and prevents gears getting clogged up in the really muddy rides and CX races. And the SRAM Apex hydraulic disc brakes provide ample stopping power.
The super wide handlebar equipped on the GX series delivers maximum stability and bag loads of space for all the lights, tech and storage you need for your trip. With a nice long wheelbase and cockpit reach, the GX series smoothes out even the roughest of pothole-littered fire roads.
A bike that we have loved so much in the shop that we decided to incorporate it as one of our hire options, and has gone down an absolute storm.
| Bike Size | Height (cm) | Height (ft) |
|---|---|---|
| 50cm | 157 - 165 | 5'2 - 5'5 |
| 52cm | 165 - 172 | 5'5 - 5'8 |
| 54cm | 172 - 180 | 5'8 - 5'11 |
| 56cm | 180 - 187 | 5'11 - 6'2 |
| 58cm | 187 - 195 | 6'2 - 6'5 |
If you require expedited/next day shipping, give us a call on 0141 552 0841 or drop us an email on sales@billybilslandcycles.co.uk and we'll do our best to accommodate.
Every bike we sell is fully assembled and tested for safety by our trained mechanics. We then partly disassemble the bike and carefully re-pack to prepare for shipping.
Depending on the model, upon receipt you may be required to straighten and tighten the handlebars, reattach front wheel and attach the pedals. Please ensure that the pedals are greased and fitted correctly - the pedals will be marked L and R and have to be fitted to the left and right cranks respectively. Pedal do not come with every bike and need to be bough separately, especially on more high-end models. Please check when you are ordering.
There is a guide in the box telling you which tools you will need and the steps to follow. This will require some degree of mechanical skill to put together and can need some minor adjustments. The less confident you are in this field the more we'd recommend having it checked over by a professional mechanic.
Delivery Costs
We offer a standard 48Hr Service for courier shipping via Royal Mail for accessories, and APC Next Day for bike deliveries.
| Item | Shipping Info |
| Small Item | £4.99 |
| Kids Bike | £10 |
| Adult Bike (excl. Pinarello) | FREE |
| Frame | 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, DOX Cable Routing |
| Fork | Whyte Straight Bladed Full Carbon Fork, Tapered Carbon Steerer, Internal Cable Routing, Flat Mount 180mm Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards |
| Rear Shock | N/A |
| Headset | FSA No. 42, Integrated Road, 1 1/2"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings |
| Rear Hub | Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 142mm Thru Axle, XD Driver, 32 Hole |
| Front Hub | Alloy, Double Sealed Cartridge Bearings, Centre-Lock, 12mm x 100mm Thru Axle, 32 Hole, Concealed Hex Key |
| Spokes | DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples |
| Rims | WTB ST i25 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole |
| Tyres | Maxxis, Rambler TR, 700c x 45c 60TPI EXO Tan Sidewall Protection, Dual Compound |
| Shift Levers | SRAM Apex 1, Full Hydraulic, 11 Speed |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Apex 1, Long Cage, 11 Speed |
| Cassette | SRAM XG-1150, 10-42, 11 Speed |
| Chain | SRAM PC-1110, 11 Speed |
| Crankset | Whyte, Forged 2pcs Cranks, Direct Mount, Narrow/Wide 38T Alloy Chainring, 50/52 170mm, 54 172.5mm, 56/58 175mm 11 Speed |
| Bottom Bracket | BSA 68mm |
| Seatpost | Trans-X YSP18 Dropper Post, 30.9mm, 50/52/54 80mm Travel, 56/58 100mm Travel, Rocker Remote |
| Seat | Whyte Custom, Light Weight Triple Density Base, Triple Panel Design |
| Bar | Whyte 500 by Controltech, 6061 Alloy, Gravel 20mm Riser Bar, 31.8mm x 500mm |
| Stem | Whyte Alloy, +-7? Rise, 50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm Extension |
| Grips | Whyte Anti Slip, Cross Bar Tape |
| Front Brake | SRAM Apex 1 Hydraulic, Centre-Lock 180mm Disc, Flat Mount, Internal Routing |
| Rear Brake | SRAM Apex 1 Hydraulic, Centre-Lock 160mm Disc, Flat Mount, Internal Routing |
| Brake Levers | SRAM Apex 1, Hydraulic |
| Pedals | None |
| Shock Stroke and Sag Setting | N/A |
| Reducer Bush Widths | N/A |
| Eye to Eye Length | N/A |
| Colours | Matt Diesel |
| Sizes | LG - 56cm, MD - 54cm, SM - 52cm, XL - 58cm, XS - 50cm |
| Brand | Whyte |
| Model Year | 2021 |
| Barcodes | 5032489068207, 5032489068214, 5032489068221, 5032489068238, 5032489068245 |
| SKUs / Part Numbers | WFR50V4, WFR52V4, WFR54V4, WFR56V4, WFR58V4 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
| HEAD TUBE ANGLE | 70 |
| SEAT TUBE ANGLE | 74 |
| TOP TUBE HORIZONTAL | 559 |
| BB HEIGHT ABOVE GROUND | 277 |
| STANDOVER HEIGHT | 784 |
| WHEELBASE | 1032 |
| CHAINSTAY LENGTH | 425 |
| SEATPOST DIAMETER | 30.9 |
| HEAD TUBE LENGTH | 130 |
| SEAT TUBE LENGTH BBC2T | 500 |
| STACK | 570 |
| REACH | 396 |
